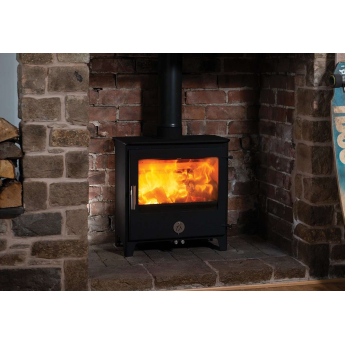

Chilli Penguin "Woody" CAT Advanced Wood Stove
Why shop with us?
Genuine Chilli Penguin products.
Personal after-sales support.
Supporting a growing local business.
Helping to support rural employment in South Wales.
Your shopping cart is empty!
If you have a big space in your life and you only want to burn wood, then this version of Woody is the one for you. Slim, efficient, clean burning and innovative. The Woody Eco (Cat) is 83% efficient and has a particulate emission figure that is 75% lower than the figure required by Ecodesign standard, thanks to the catalytic converter technology.
We are really impressed with the results achieved using catalytic converters. However they do come at a cost, a lot of wood only stoves cost less than their multi fuel equivalents, as they tend to be more simple, with less components. A catalytic convertor stove includes additional components. Each of these stoves include two (replaceable) catalytic converters. So we thought we should explain what you are paying for and why they are effective.
A catalytic converter consists of a honeycomb type structure with a large surface area which is coated with catalytic materials. As the gases pass over the surface chemical reactions occur, resulting in changes to the composition of the flue gases. In a wood stove, oxidation of the products of incomplete combustion, change the make-up of the gases, for example toxic carbon monoxide and hydrocarbon gases are oxidised into less harmful carbon dioxide and water. These chemical reactions release heat energy. This is effectively a secondary combustion process, as it raises the temperature of the converter to the point where solid soot particles can be burned. For this reason they are sometimes referred to as ‘catalytic combustors’.
The secondary heat retaining glazing with air wash and the landscape window offer a clear, generous view of the fire. It also has the newly designed Chilli Penguin handle.
Ecodesign
In order to be an Ecodesign stove, a stove must be independently verified to meet stringent emission requirements. Particulates or PMs are the most commonly recognised of these measures. The maximum limit for these is 40 mg/m3. This stove achieves just 11mg/m3. All other measures are all listed in our technical details table below. Click here for further Ecodesign info.
Item specifics
- Certifications & Approvals EN 13240, Hetas, Ecodesign
- CO Emissions 0.06 (%-13% O2)
- DTC Above (mm) 550
- DTC Rear (mm) 150
- DTC Side (mm) 400
- DTNC Above (mm) 150
- DTNC Rear (mm) 50
- DTNC Side (mm) 100
- EcoDesign Ready Yes
- Energy Efficiency (%) 83.3
- Energy Efficiency Class A+
- Flue Diameter (mm) 125
- Flue Position Top, Rear
- Fuel Type Wood
- Nominal Heat Output (kW) 5.0
- Overall Depth (mm) 293
- Overall Height (mm) 584
- Overall Width (mm) 565
- Warranty / Guarantee 7 Years
- Product Manual View File
Please note certain datasets (such as distances to combustibles) are typically variable based on product selection & the installation components used. Please always refer to the product manual or ask us a question about this product to be sure you are aware of all relevant data prior to purchase.
All specifications are noted for reference only and are taken from the manufacturer's data at the time of listing.
Please refer to the manufacturer's product manual for accurate product data.
